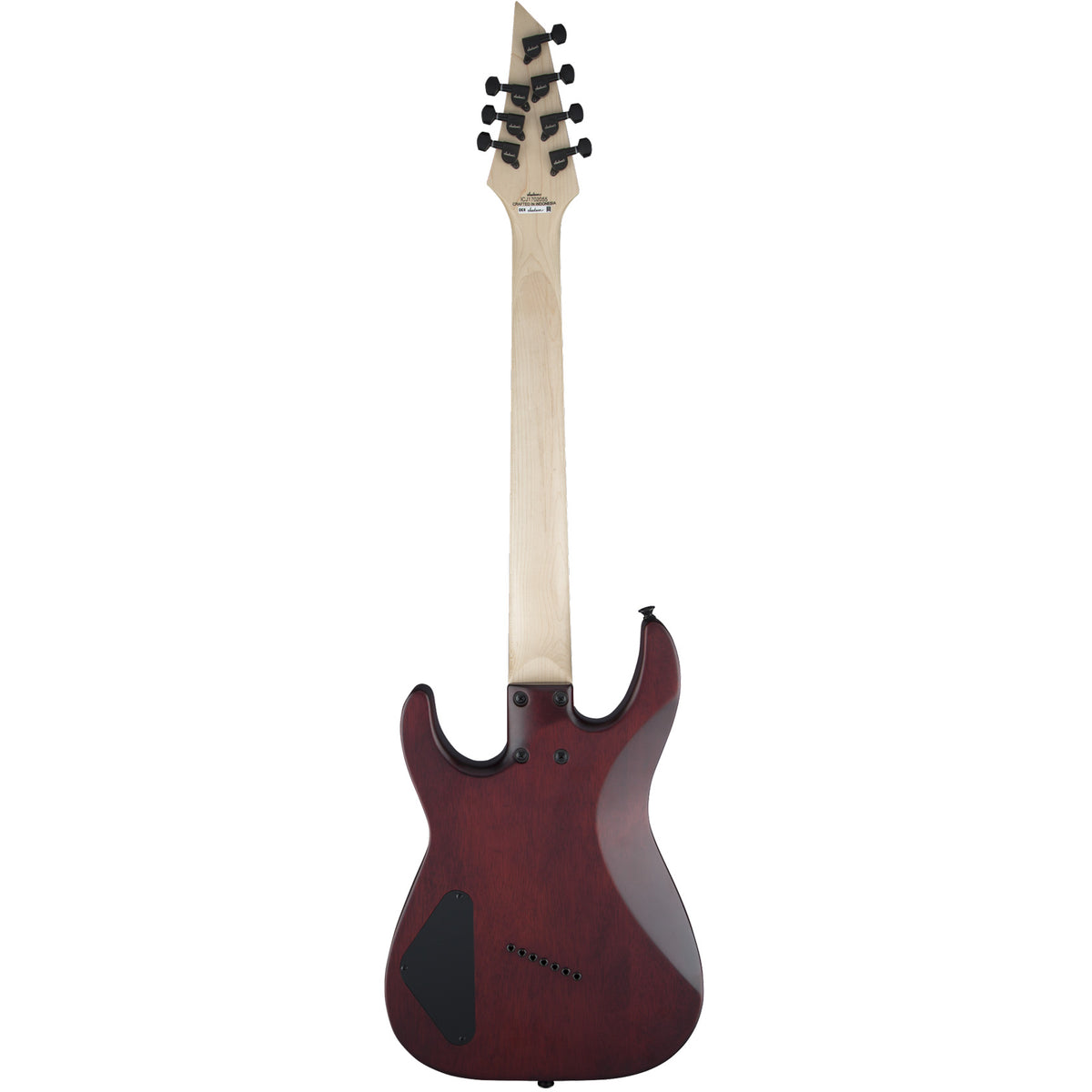

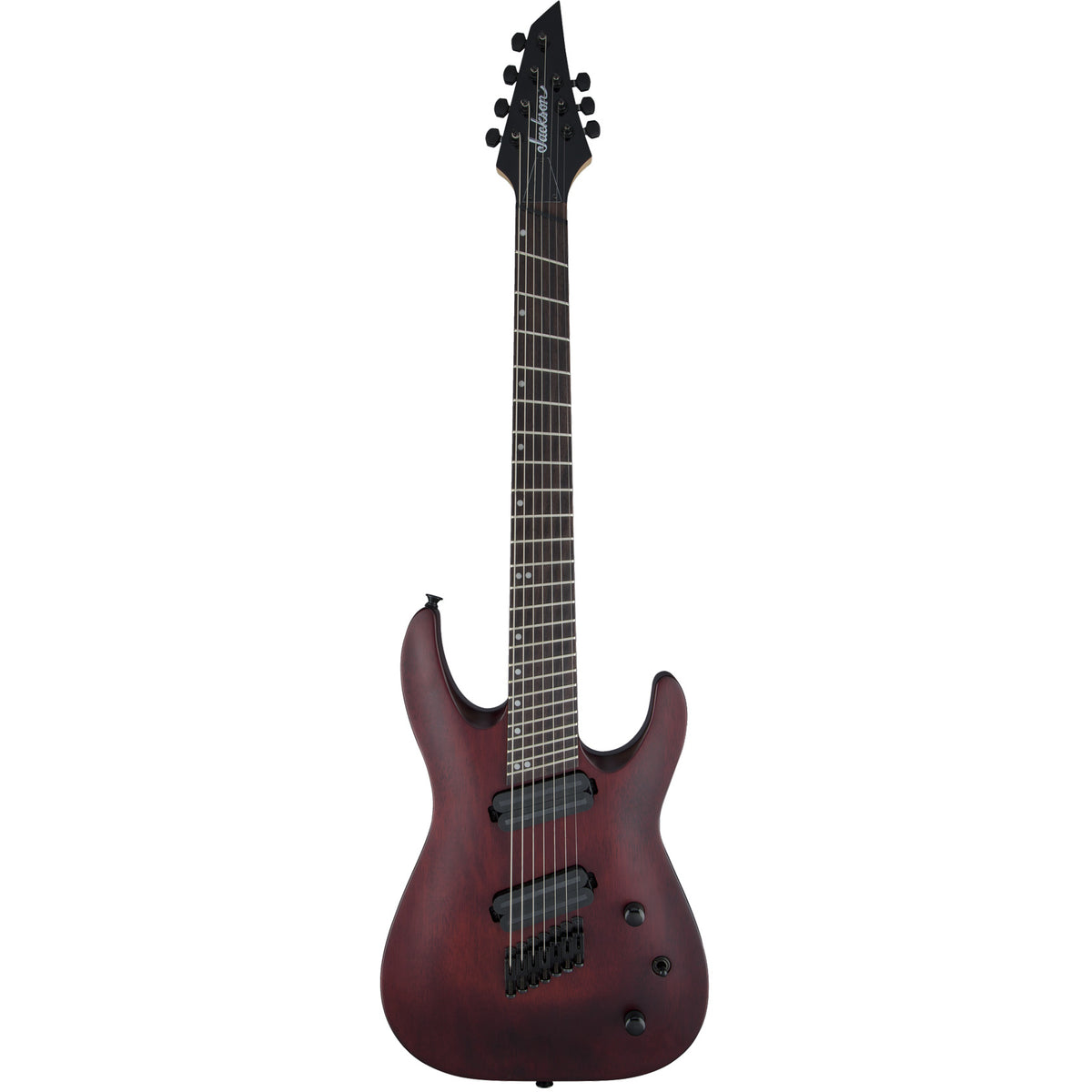

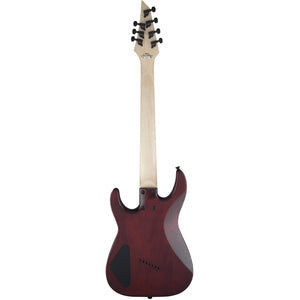

Jackson X Series Dinky Arch Top DKAF7 MS Multi-Scale Stained Mahogany

Shred in ergonomic comfort and style with the Jackson X Series Dinky™ Arch Top DKAF7 MS. A high-performance evolution of the electric guitar, this 7-string multi-scale model unlocks the possibilities of an instrument by accommodating two scale lengths on one fingerboard, thus improving overall playing comfort while improving tension and intonation.

The DKAF7 features a 25.5"-27" multi-scale length, poplar body with an arched top, bolt-on maple neck with graphite reinforcement and scarf joint, 12"-16" compound radius fingerboard with 24 jumbo frets and offset dot inlays, Jackson die-cast tuners and 4x3 AT-1 headstock.

Dual Jackson uncovered 7-string blade humbucking pickups power this metal beast and can be shaped by a three-way toggle switch and single volume and tone controls.

To help improve intonation, the guitar has been equipped with Jackson designed individual bridge saddles, staggered to accommodate for the two scale lengths.

The DKAF7 MS is available in Gloss Black or Stained Mahogany with black hardware.

Product Specs
General
Color: Stained Mahogany
Country Of Origin: ID
Orientation: Right-Hand
Series: X
Neck
Fingerboard Material: Laurel
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Headstock: Jackson® AT-1 4x3 (4 Over/3 Under)
Neck Construction: Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish: Satin
Neck Material: Maple
Number of Frets: 24
Nut Material: Black Plastic
Nut Width: 1.875" (47.6 mm)
Position Inlays: Offset Pearloid Dot
String Nut: Black Plastic
Truss Rod: Dual-Action
Truss Rod Nut: Truss Rod Adjustment at Nut
Body
Body: Poplar
Body Finish: Satin
Body Material: Poplar
Body Shape: Dinky™
Hardware
Bridge: Staggered Individual Saddles
Control Knobs: Dome-Style
Hardware Finish: Black
Neck Plate: 4-Bolt (recessed screws)
Pickguard: None
Strap Buttons: Standard
Strings: Nickel Plated Steel (.009-.054 Gauges)
Switch Tip: Black
Tuning Machines: Jackson® Sealed Die-Cast
Electronics
Bridge Pickup: Jackson® Uncovered 7-String Blade Humbucking
Controls: Volume, Tone
Neck Pickup: Jackson® Uncovered 7-String Blade Humbucking
Pickup Configuration: HH
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
