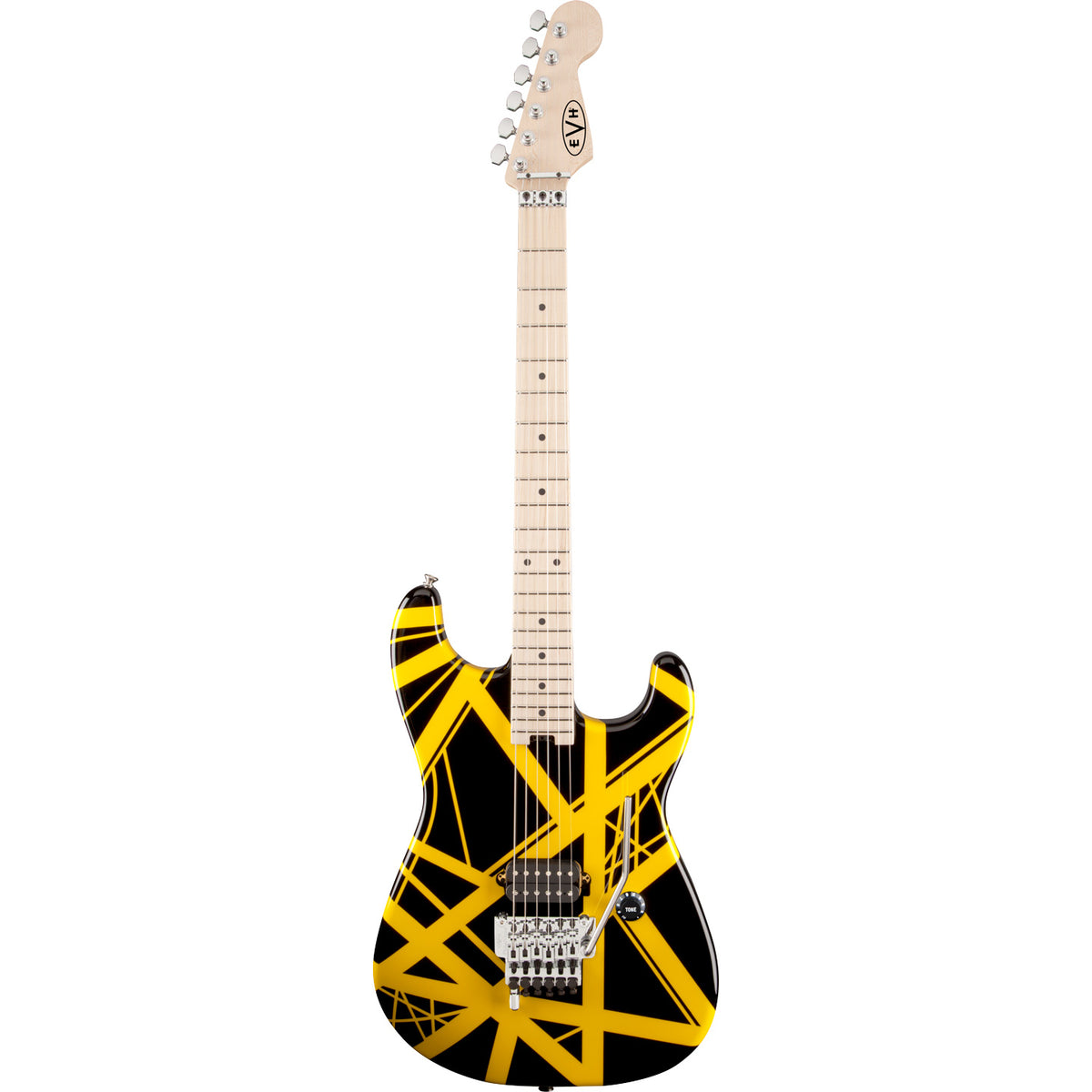

EVH Striped Series Black with Yellow Stripes

With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.

The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie's famed striped graphics — Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.

These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.

Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.

Product Specs
General
Series: Striped Series
Orientation: Right-Hand
Color: Black with Yellow Stripes
Country Of Origin: MX
Neck
Headstock: Licensed Fender® Stratocaster®
Neck Material: Quartersawn Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: EVH® Modified "C" Backshape
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Maple
Position Inlays: Black Dot
Number of Frets: 22
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Floyd Rose® R3 Locking
Nut Width: 1.6875" (42.86 mm)
Nut Material: Floyd Rose® R3 Locking
Body
Body: Basswood
Body Finish: Gloss Urethane
Body Shape: Other
Body Material: Basswood
Hardware
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Tremolo Block: Brass
Pickup Covers: Black
Control Knobs: Black Stratocaster®-Style Skirt (Labeled "Tone")
Hardware Finish: Chrome
Tuning Machines: EVH®-Branded Gotoh®
String Trees: Floyd Rose® Retainer Bar
Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1000 Series Locking
Neck Plate: 4-Bolt Standard
Strap Buttons: Oversized
Electronics
Bridge Pickup: EVH® Wolfgang® Humbucking
Pickup Configuration: H
Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
Switching: None
