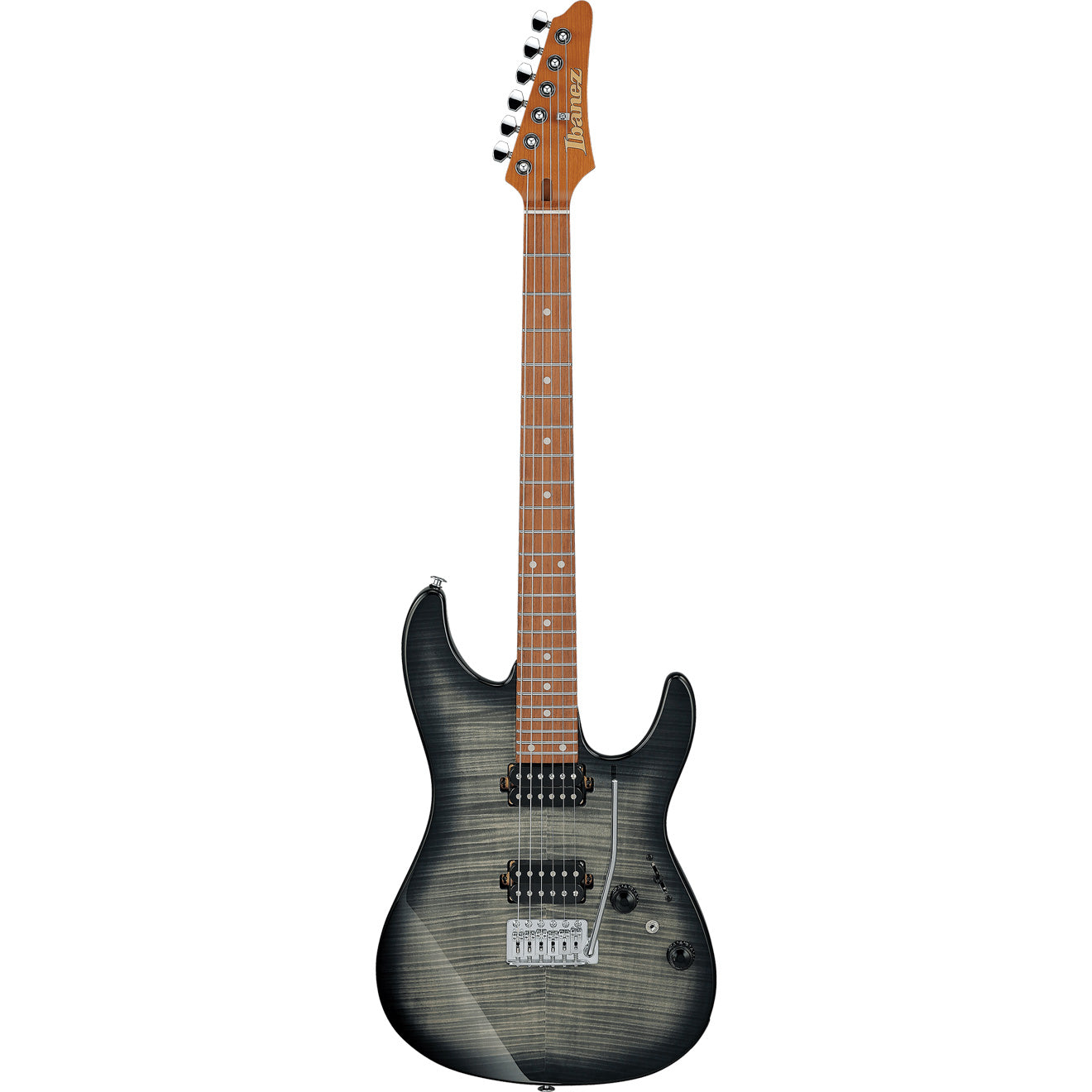

Ibanez AZ24S1F Transparent Black Sunburst

Features

Roasted Maple neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Jatoba fretboard

Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.

Jumbo Stainless Steel frets

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

Locking machine heads

Locking machine heads ensure accurate and stable tuning.

Flamed Maple top / Alder body

The Flamed Maple top displays a beautiful wood grain. The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

Ibanez Modern Custom pickups

Ibanez Modern Custom pickups feature a dual humbucker configuration with alnico V magnets. They offer powerful tone and a quick response, which pair especially well with overdrive and distortion.

T106 tremolo

The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

dyna-MIX10 switching system with Alter Switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.

SPECS
neck type    AZRoasted Maple neck
top/back/body    Flamed Maple topAlder body
fretboard    Jatoba fretboardWhite dot inlay
fret    Jumbo Stainless Steel frets
number of frets    24
bridge    T106 bridge
string space    10.5mm
neck pickup    Ibanez Modern Custom (H) neck pickupPassive/Alnico
bridge pickup    Ibanez Modern Custom (H) bridge pickupPassive/Alnico
factory tuning    1E,2B,3G,4D,5A,6E
string gauge    .010/.013/.017/.026/.036/.046
hardware color    Chrome

NECK DIMENSIONS
Scale :    648mm/25.5"
a : Width    42mm at NUT
b : Width    57mm at 24F
c : Thickness    20.5mm at 1F
d : Thickness    22.5mm at 12F
Radius :    305mmR
